Setup

This guide walks through installing the plugin, integrating it with your project's GAS setup, and getting a first interactive entity working in a level.

---

Step 1: Download & Install the Plugin

Download Gameplay Interaction from the Epic Games Launcher for your target engine version.

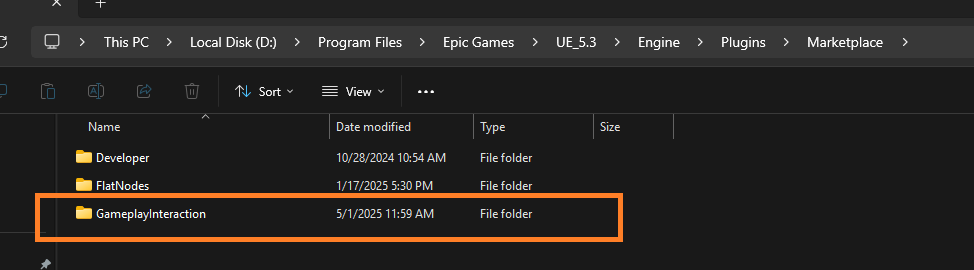

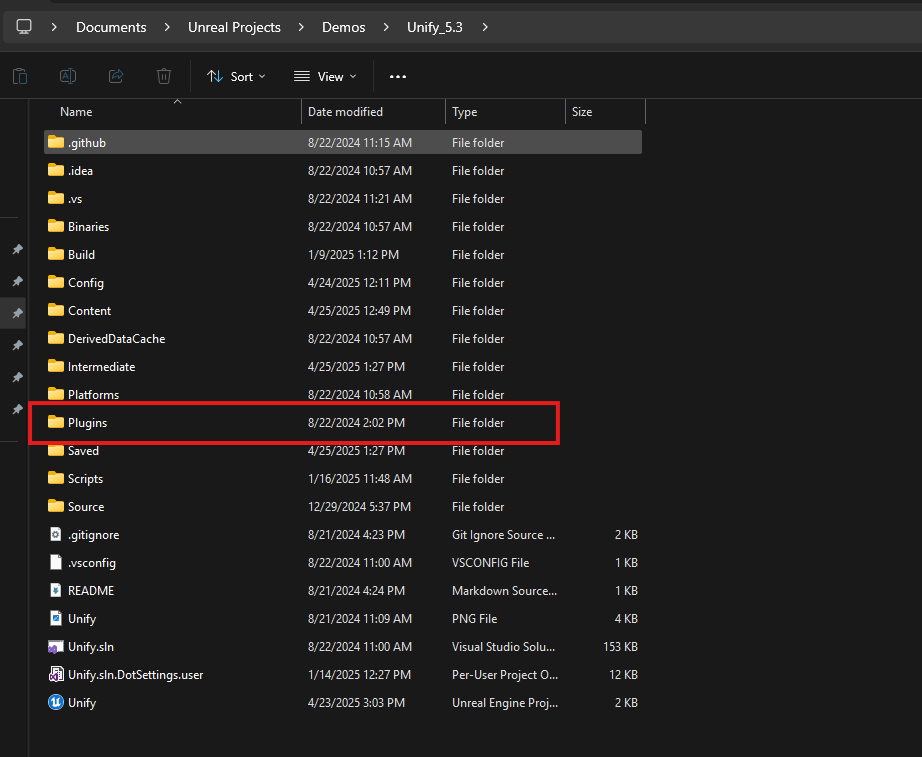

After downloading, copy the GameplayInteraction folder from:

{EngineDirectory}/Plugins/Marketplace/GameplayInteraction

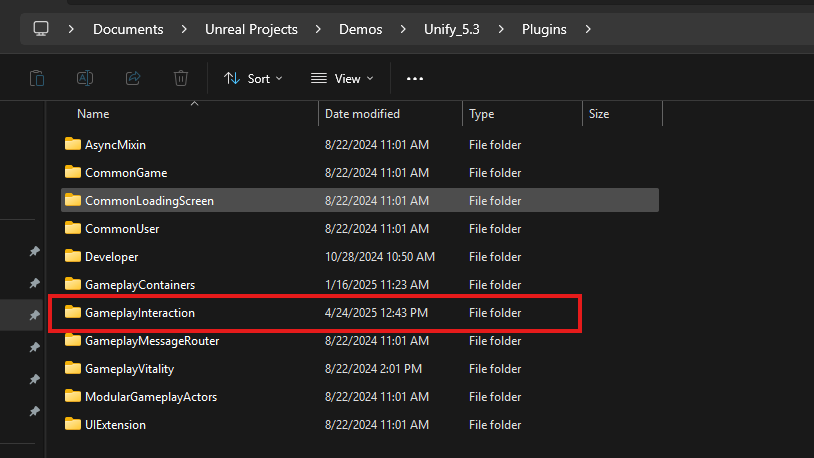

into your project's Plugins/ folder (create it if it doesn't exist). Then right-click your .uproject and select Generate Visual Studio project files.

---

Step 2: Enable Dependencies

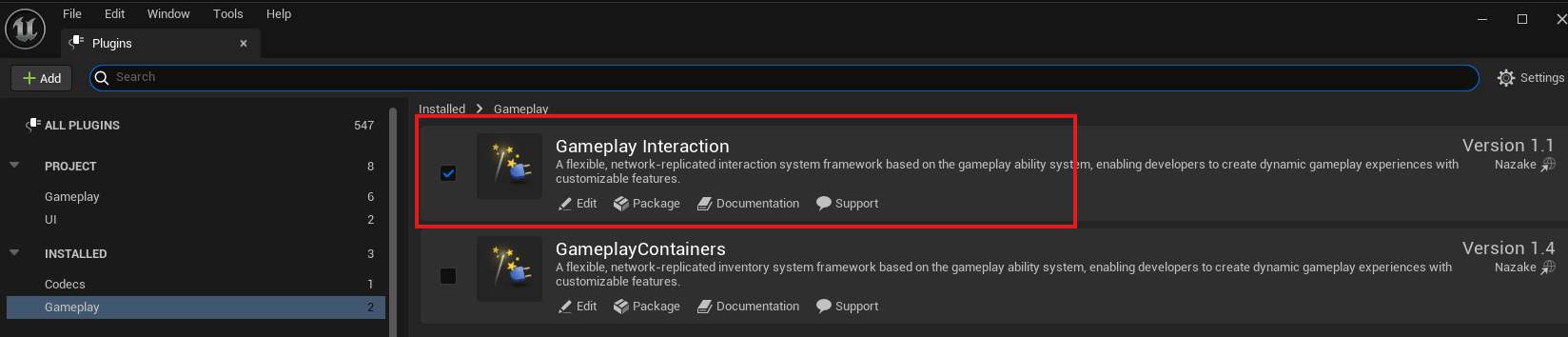

Open your project in the Unreal Editor and navigate to Edit → Plugins. Ensure the following are all enabled:

• Gameplay Abilities
• Enhanced Input
• Gameplay Interaction (under the Gameplay category)

note

If you're on a Blueprint-only project you must create at least one empty C++ class first to convert it to a C++ project before proceeding.

---

Step 3: Add Module Dependencies

Open Source/YourProject/YourProject.Build.cs and add the required modules:

PublicDependencyModuleNames.AddRange(new string[]
{
    "Core",
    "CoreUObject",
    "Engine",
    "InputCore",
    "GameplayAbilities",
    "GameplayTags",
    "EnhancedInput",
    "GameplayInteraction",
});

PrivateDependencyModuleNames.AddRange(new string[]
{
    "UMG",
    "Slate",
    "SlateCore",
});

Regenerate project files and recompile.

---

Step 4: Player Controller Setup

UGameplayInteractionComponent is a Controller Component and should be added to your APlayerController subclass. Your controller must also implement IGameplayInteractionInterface so the interaction ability can locate the component.

// YourPlayerController.h
#include "Core/IGameplayInteractionInterface.h"
#include "Core/GameplayInteractionComponent.h"

UCLASS()
class YOURPROJECT_API AYourPlayerController : public APlayerController,
                                              public IAbilitySystemInterface,
                                              public IGameplayInteractionInterface
{
    GENERATED_BODY()

public:

    AYourPlayerController(const FObjectInitializer& ObjectInitializer);

    // IAbilitySystemInterface
    virtual UAbilitySystemComponent* GetAbilitySystemComponent() const override;

    // IGameplayInteractionInterface
    virtual UGameplayInteractionComponent* GetInteractionComponent() override;

    virtual void OnPossess(APawn* InPawn) override;
    virtual void OnRep_PlayerState() override;

protected:

    UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Interaction")
    TObjectPtr<UGameplayInteractionComponent> InteractionComponent;
};

// YourPlayerController.cpp
AYourPlayerController::AYourPlayerController(const FObjectInitializer& ObjectInitializer)
    : Super(ObjectInitializer)
{
    InteractionComponent = CreateDefaultSubobject<UGameplayInteractionComponent>(TEXT("InteractionComponent"));
    InteractionComponent->SetIsReplicated(true);
}

UAbilitySystemComponent* AYourPlayerController::GetAbilitySystemComponent() const
{
    if (const AYourPlayerState* PS = GetPlayerState<AYourPlayerState>())
    {
        return PS->GetAbilitySystemComponent();
    }
    return nullptr;
}

UGameplayInteractionComponent* AYourPlayerController::GetInteractionComponent()
{
    return InteractionComponent;
}

void AYourPlayerController::OnPossess(APawn* InPawn)
{
    Super::OnPossess(InPawn);

    // Register the ASC so the trace timer and tag bindings activate
    if (AYourPlayerState* PS = GetPlayerState<AYourPlayerState>())
    {
        InteractionComponent->RegisterAbilitySystemComponent(PS->GetAbilitySystemComponent());
    }
}

void AYourPlayerController::OnRep_PlayerState()
{
    Super::OnRep_PlayerState();

    // Also called on the owning client — needed so the local trace starts
    if (AYourPlayerState* PS = GetPlayerState<AYourPlayerState>())
    {
        InteractionComponent->RegisterAbilitySystemComponent(PS->GetAbilitySystemComponent());
    }
}

info

Call RegisterAbilitySystemComponent in both OnPossess (server) and OnRep_PlayerState (owning client). The component guards against double-registration internally.

When the player unpossesses or the ASC is torn down, call:

InteractionComponent->UnregisterAbilitySystemComponent();

---

Step 5: Grant the Interaction Abilities

The plugin ships two abilities that must be granted to the player:

Ability	Tag	How to activate
GA_Interact	Input.Interact	Grant and bind to your interact input action
GA_Interaction_SwitchOption	Input.Interact.SwitchOption	Grant and bind to your cycle input action

These abilities are located in the plugin content folder under Core/Abilities/Templates.

Grant them using your ability set system or directly via GiveAbility:

// Grant GA_Interact and bind it to the Input.Interact tag
FGameplayAbilitySpec Spec(GA_Interact_Class, 1);
Spec.DynamicAbilityTags.AddTag(GameplayInteractionTags::TAG_Input_Interact);
AbilitySystemComponent->GiveAbility(Spec);

// Grant GA_Interaction_SwitchOption and bind to Input.Interact.SwitchOption
FGameplayAbilitySpec SwitchSpec(GA_SwitchOption_Class, 1);
SwitchSpec.DynamicAbilityTags.AddTag(GameplayInteractionTags::TAG_Input_Interact_SwitchOption);
AbilitySystemComponent->GiveAbility(SwitchSpec);

Then in your input processing, call AbilityInputTagPressed / AbilityInputTagReleased with the appropriate tags when the player triggers those input actions.

Circular Dependency

If you have your own UGameplayAbility subclass, copy the ability classes out of the plugin into your own project module and reparent them. This avoids circular module dependencies and lets you use your project-specific base class.

---

Step 6: Collision Setup

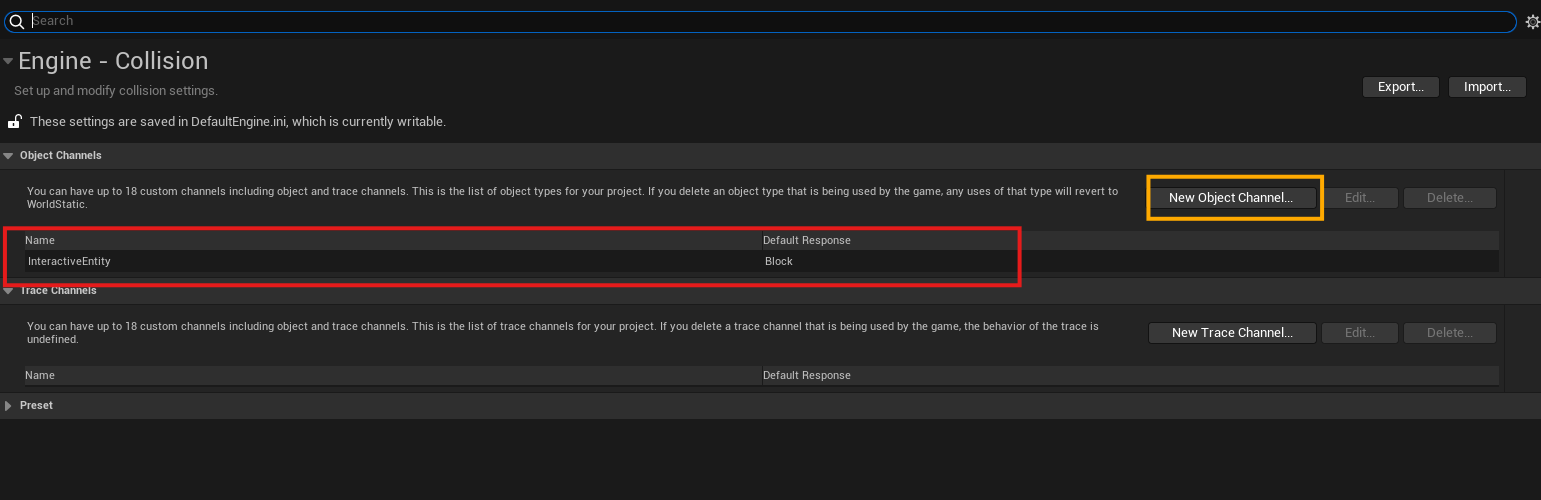

The interaction trace uses a dedicated collision channel. In Project Settings → Collision:

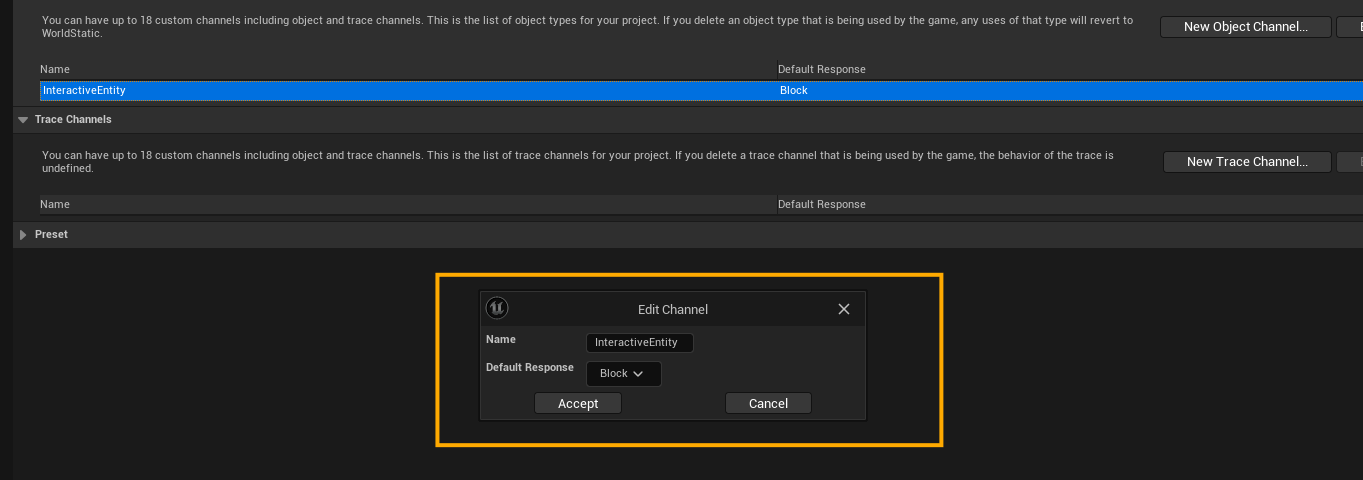

• Add a new Trace Channel named Interaction — set Default Response to Block.

The plugin maps ECC_Interaction to ECC_GameTraceChannel1. Adjust the channel number in GameplayInteraction.h if your project already uses that slot:

#define ECC_Interaction ECC_GameTraceChannel1

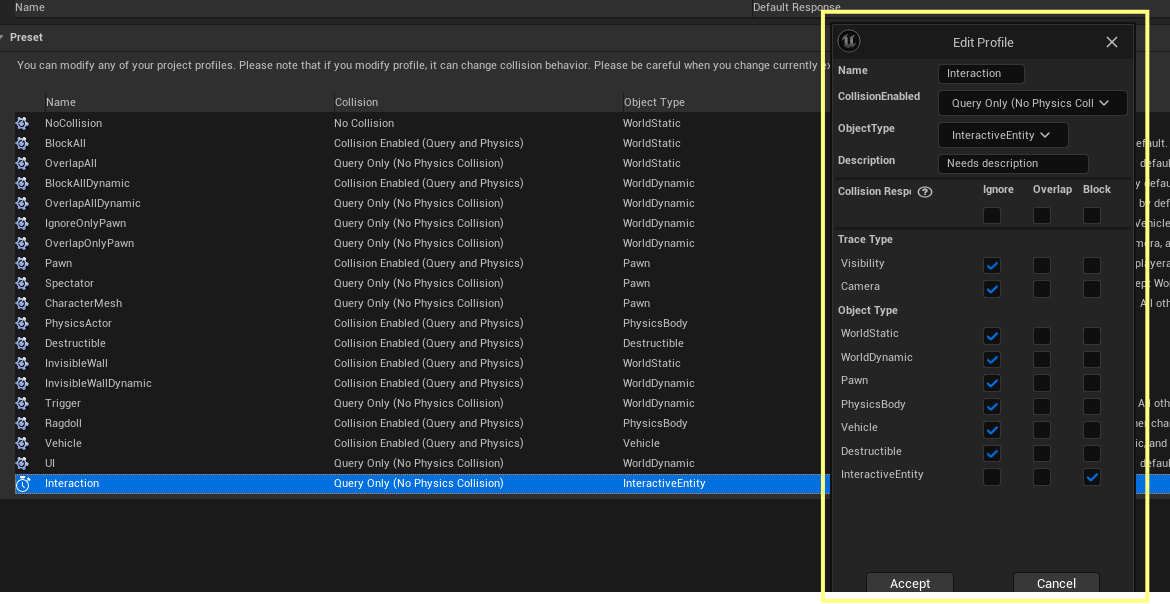

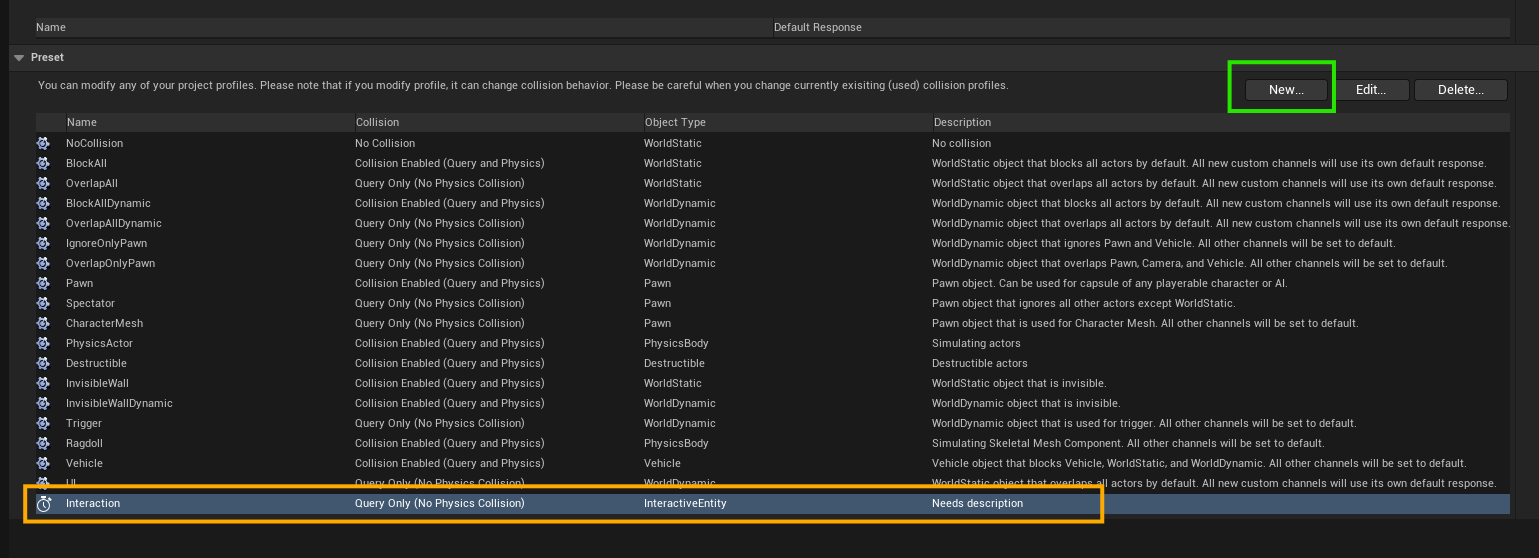

On each mesh you want to be detectable, set the collision preset to Interaction and add the Interactive component tag.

---

Step 7: Outline Post-Process Setup

For the outline visual to appear:

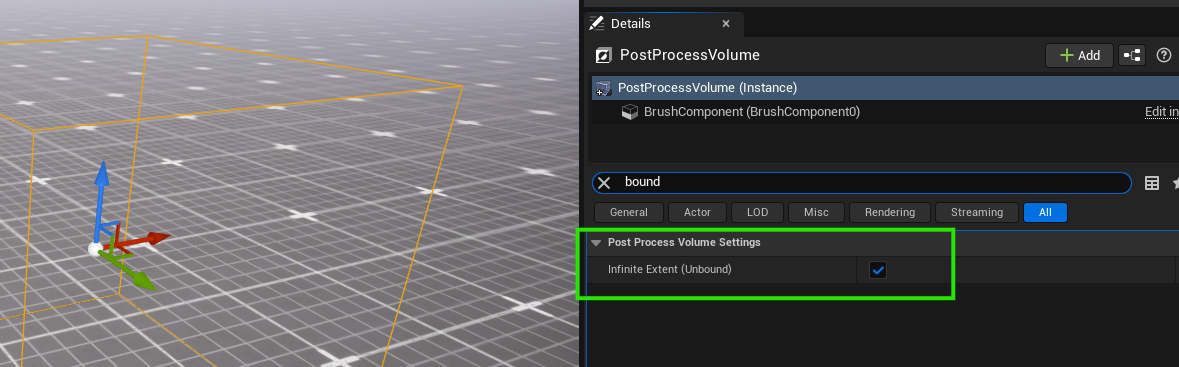

1. Add a Post Process Volume to your level and enable Infinite Extent (Unbound).

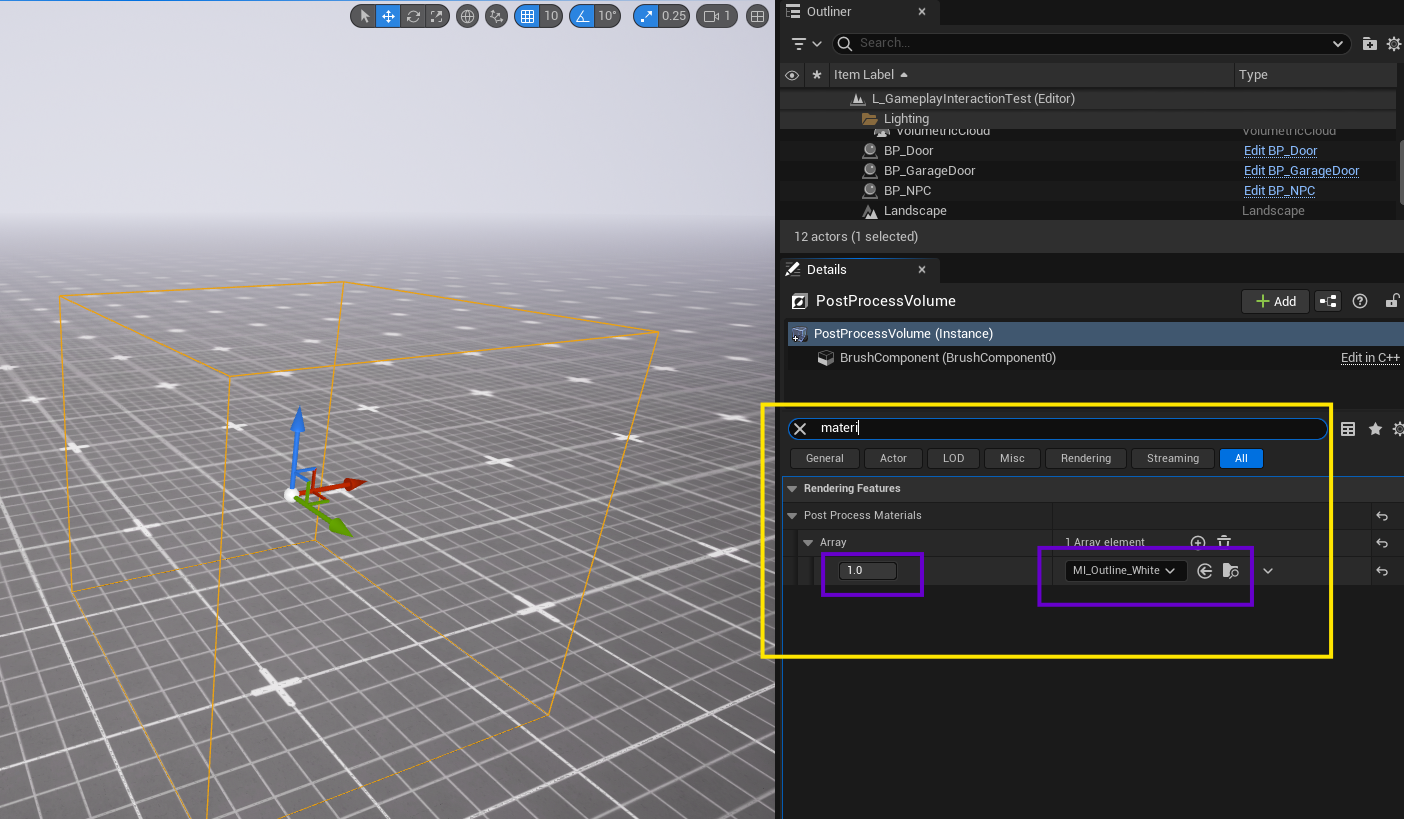

2. In its Post Process Materials array, add MI_Outline_White from the plugin content folder.

note

If you can't see plugin content in the Content Browser, open the Settings dropdown (top-right of the browser) and enable Show Plugin Content.

---

Step 8: Interaction Camera (Optional)

By default the trace originates from the avatar actor's location. For a first-person or over-the-shoulder camera setup, tag a UCameraComponent on the avatar with the Interaction component tag. The component will automatically use it as the trace origin:

// In your character constructor
CameraComponent->ComponentTags.Add(TEXT("Interaction"));

---

Step 9: Add the HUD Widget

Add W_Interaction_Indicator (found in the plugin content UI/ folder) to your main HUD. Position it at the screen center.

Set it to Hidden/Collapsed initially. Show it when OnEntityInViewChanged fires with a valid entity, and hide it when the entity is null.

In your widget or HUD Blueprint, call:

Widget->RegisterInteractionComponent(PlayerController->GetInteractionComponent());

This binds the widget to all interaction delegates automatically.

---

Step 10: Error Mapping (Optional)

To show contextual error messages (e.g. "Someone is already using this"), create a UGameplayInteractionErrorMapping child Blueprint data asset and assign it to UGameplayInteractionComponent::ErrorMapping.

Default entries for all built-in tags are pre-populated. Override the Message, Color, Icon, and bIsSilent fields per tag as needed. See the Error Mapping page for details.

---

Step 11: Testing

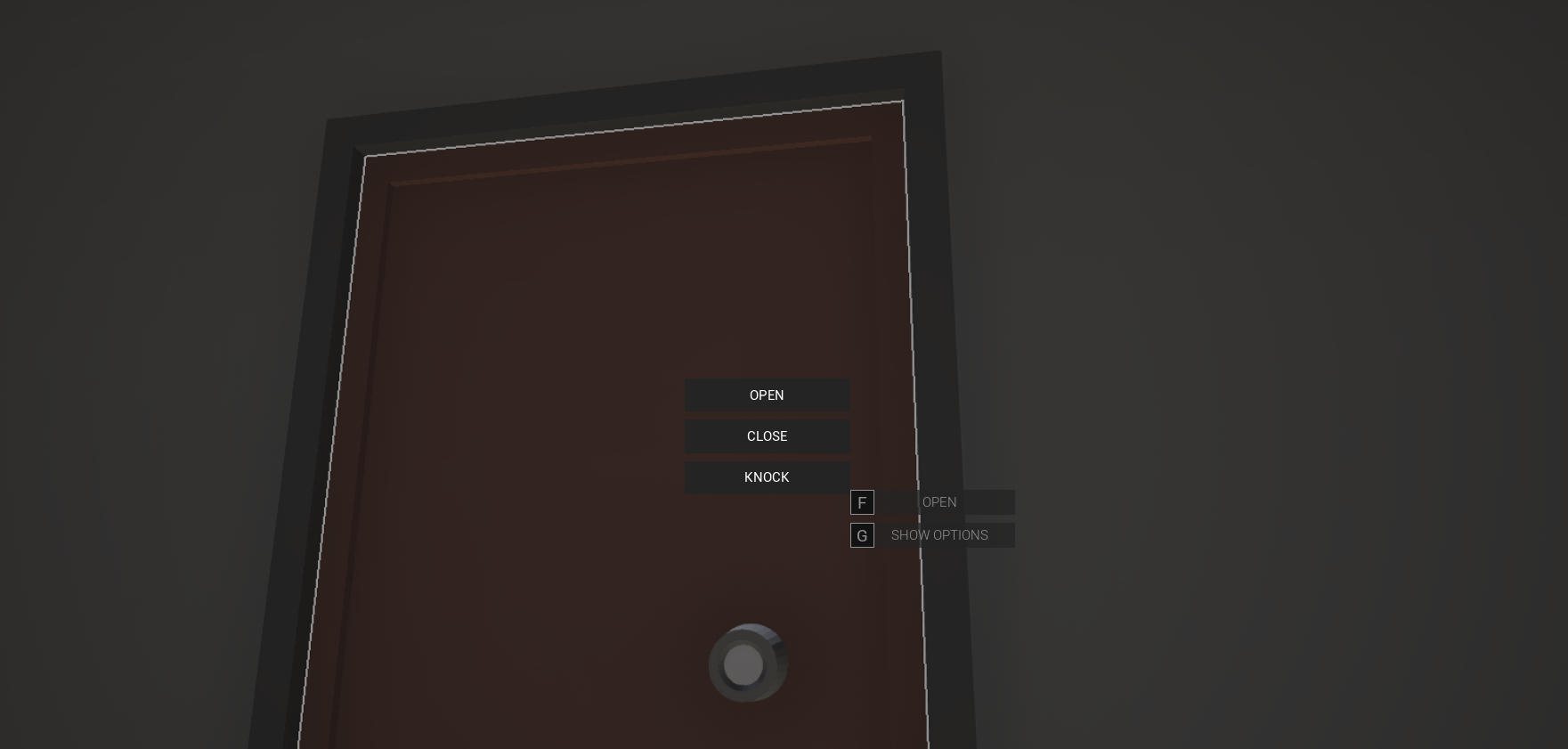

Place an AInteractiveEntity Blueprint (or one of the presets from Content/Entities/) in your level. Press Play, walk up to it, and look at it — you should see:

• The outline appears on the entity mesh.
• The interaction indicator widget becomes visible.
• Pressing the interact input triggers the interaction.

If nothing happens, check:

• The mesh has the Interactive component tag.
• The mesh collision preset is set to Interaction.
• RegisterAbilitySystemComponent is being called on the controller.
• The interaction ability is granted and bound to the correct input tag.
